UAV Tracking Antenna
30+ Mile Range
UAV Tracking Antenna
30+ Mile Range
- 30 Mile Range
- HD Video
- Encrypted
- Telemetry
- Rugged Case
Powerful Features
Transmit HD video and telemetry up to 30 miles. A high power, parabolic dish antenna automatically points to the unmanned aircraft whereever it is in the sky.No complicated calibration or setup!
Simply turn it on and it’s ready to go!
Easy Setup

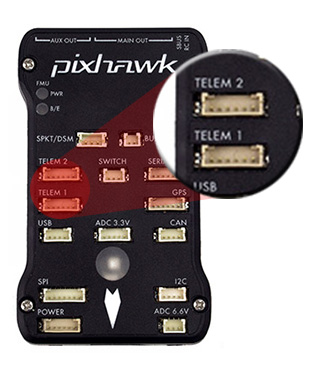

Simply connect to your unmanned vehicles telemetry port to feed gps and telemetry data. Air unit send telemetry data from drones GPS receiver to TA so it knows where to point.
Integrated GPS and electronic compass so the antenna knows where it is and where to point, even while moving on a ship or vehicle.Antenna system is mounted on a Manfrotto Carbon fiber tripod for lightweight and durability Packs into included custom rugged case for easy transport.
Easy integration with our Ground Control Station
For the ultimate ground control solution, combine our UAV tracking antenna with our Ground Control Station.
Click here for more information.
Technical Specifications
System Specifications
| Frequency Options: | 2.4G or 5.8G or 900Mhz (for telemetry) |
| Link Rate: | Up to 12 Mbps |
| Encryption: | 128 bit AES (Optional) |
| Sensitivity: | 90dBm @ 12 Mbps , -95dBm @ 6 Mbps |
| Channel Bandwidth: | 4/8 MHz |
| Output Power: | 37 dBm (5 W) |
| Location Calibration: | Integrated Magnetometer, GPS, IMU |
| Ethernet: | 10/100 BaseT, IEEE 802.3 |
Mechanical specifications
| Pan limit: | 360° |
| Tilt limit: | -13/+96° |
| Maximum height: | 2.5m |
| System weight: | 25kg |
Electrical specifications
| Input Voltage: | 14.8V |
| Input Current: | 6 A continuous, 10 A peak |
Environmental Specifications
| Temperature: | -20° C to +55° C |
| Humidity: | Up to 95% |
